Model Acquisition with NIDAQ Boards

NOTE: before working with PYDAQ, device driver should be installed and working correctly as a DAQ (Data Acquisition) device

Adquiring the model using Graphical User Interface (GUI)

Using GUI to adquire the model is really straighforward and require only two LOC (lines of code):

from pydaq.pydaq_global import PydaqGui

PydaqGui()

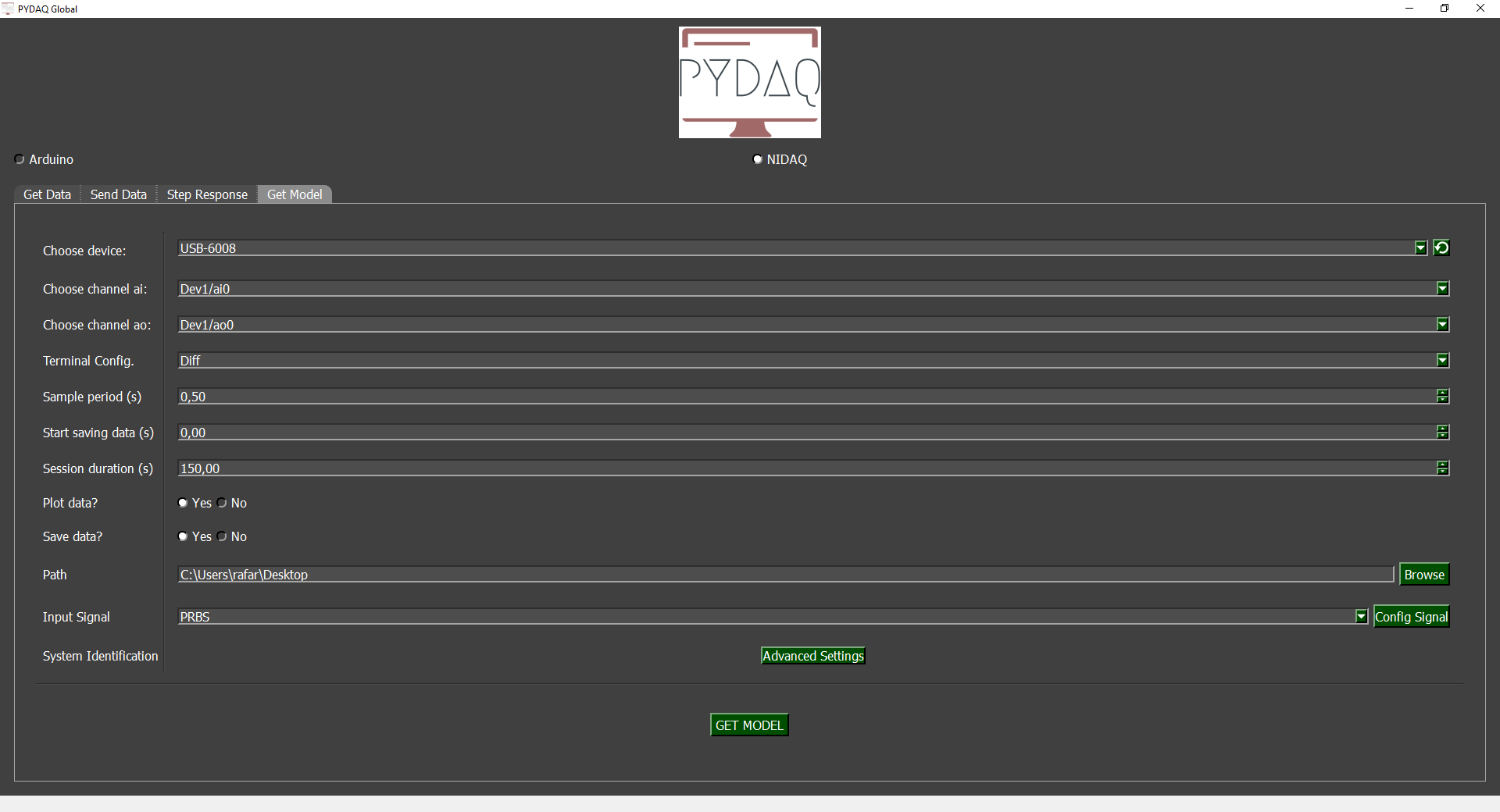

After this command, the following screen will show up. In "Get Model" screen the user is able to define parameters and start the experiment to adquire the model.

Parameters

  • Choose Device: The user is able to select desired device.

  • Choose Channel: The user is able to select desired channel.

  • Terminal Configuration: The user can change terminal configuration (Differential, RSE and NRSE).

  • Sample Period: The user can change the sample period, i.e., time (in seconds) between samples.

  • Start Saving Data: Choose when data will start being recorded to obtain the model.

  • Session Duration: The user can choose the session duration, which will change the number of iterations.

  • Plot and Save data: The user can choose whether to plot and save the data.

  • Path: Choose where the data will be saved.

Input Signal

PRBS

A pseudorandom binary sequence (PRBS) is a deterministic signal that alternates between two values and exhibits characteristics similar to white noise. The PRBS signal is inherently periodic, with a maximum period length of 2ⁿ–1, where n represents the order of the PRBS. For more information: Nonlinear System Identification: Theory and Practice with Sysidentpy

In the Config signal button, the user can customize the signal parameters.

Advanced Settings

The library used for obtaining mathematical models is SysidentPy. It is a Python module for System Identification using NARMAX models, built on top of numpy and distributed under the 3-Clause BSD license. You can configure its parameters and customize the way the mathematical model is obtained. Read more about this in the SysidentPy documentation.

By pressing the Get Model button, the program will start and the model will be obtained.

Run Get model from the command line

# Importing PYDAQ
from pydaq.get_model import GetModel

device_name = ("Dev1",)
ao_channel = ("ao0",)
ai_channel = ("ai0",)
channel = ("ai0",)
terminal = ("Diff",)
ao_min = (0,)
ao_max = (5,)

# system identification parameters
degree = 2
start_save_time_in_s = 0
out_lag = 2
inp_lag = 2
num_info_val = 6
estimator = "least_squares"
ext_lsq = True
perc_value_to_train_the_model = 15

# PRBS input parameters
prbs_bits = 6
prbs_seed = 100
var_tb = 1

# Class GetModel
g = GetModel(
    device=device_name,
    ai_channel=ai_channel,
    ao_channel=ao_channel,
    ao_min=ao_min,
    ao_max=ao_max,
    channel=channel,
    degree=degree,
    start_save_time=start_save_time_in_s,
    out_lag=out_lag,
    inp_lag=inp_lag,
    num_info_values=num_info_val,
    estimator=estimator,
    ext_lsq=ext_lsq,
    perc_value=perc_value_to_train_the_model,
    prbs_bits=prbs_bits,
    prbs_seed=prbs_seed,
    var_tb=var_tb,
)

# Method get_model_nidaq
g.get_model_nidaq()

NOTE: data will be saved on desktop, by default. To change the path the user can define "g.path = Desired path".

If the user chooses to plot, this screen will appear:

At the end of the user-defined time, screens with the results will be shown as depicted below.
